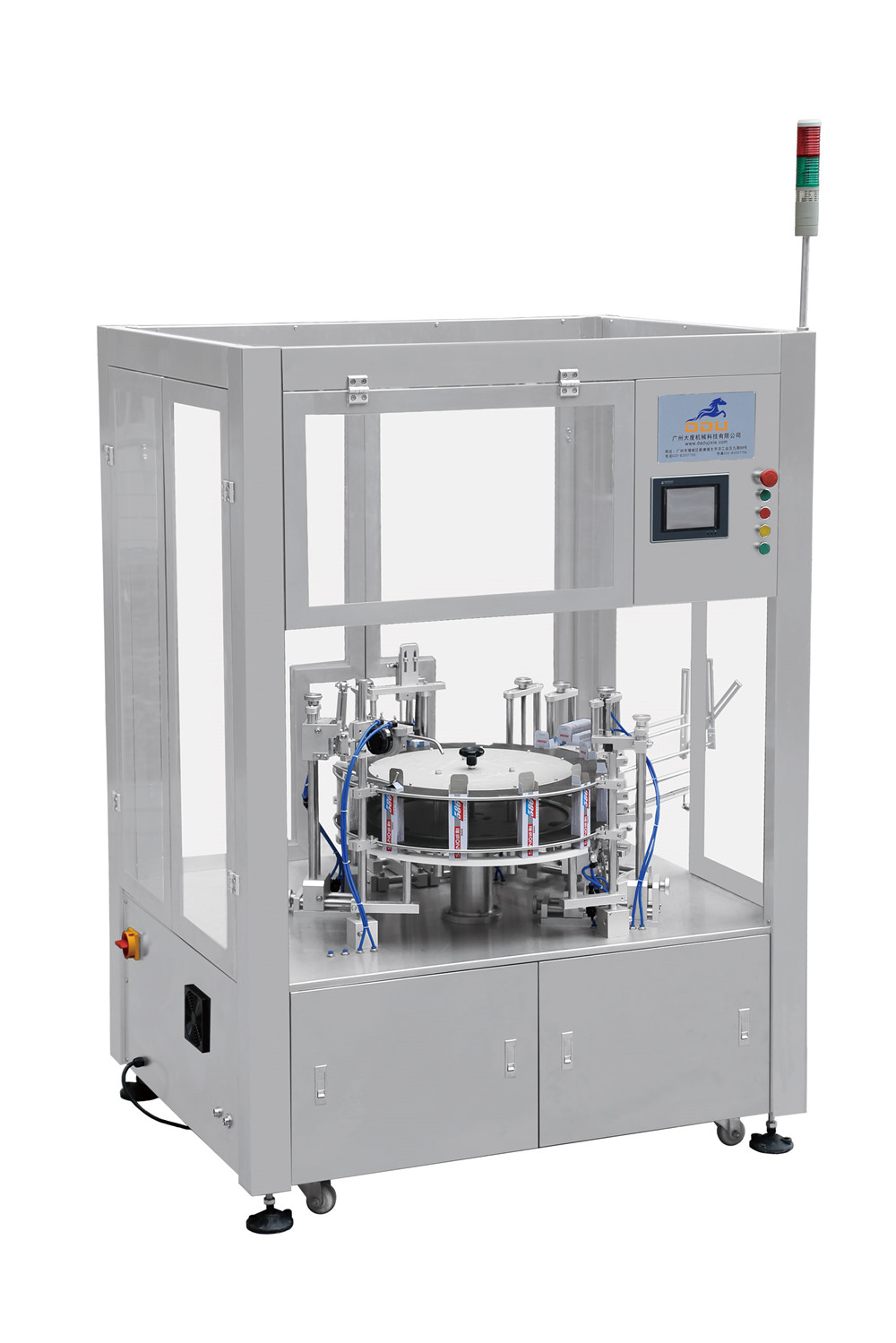

DDU-50 multifunctional vertical box filling machine

APPLICATION :Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.

FEATURES:

² It is specially design to pack small quantities multi size box.

² With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.

² 304 stainless steel case

² Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel , can easily set and change the packing parameters.

 OPTION :

 l   Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code

  Packing Process:

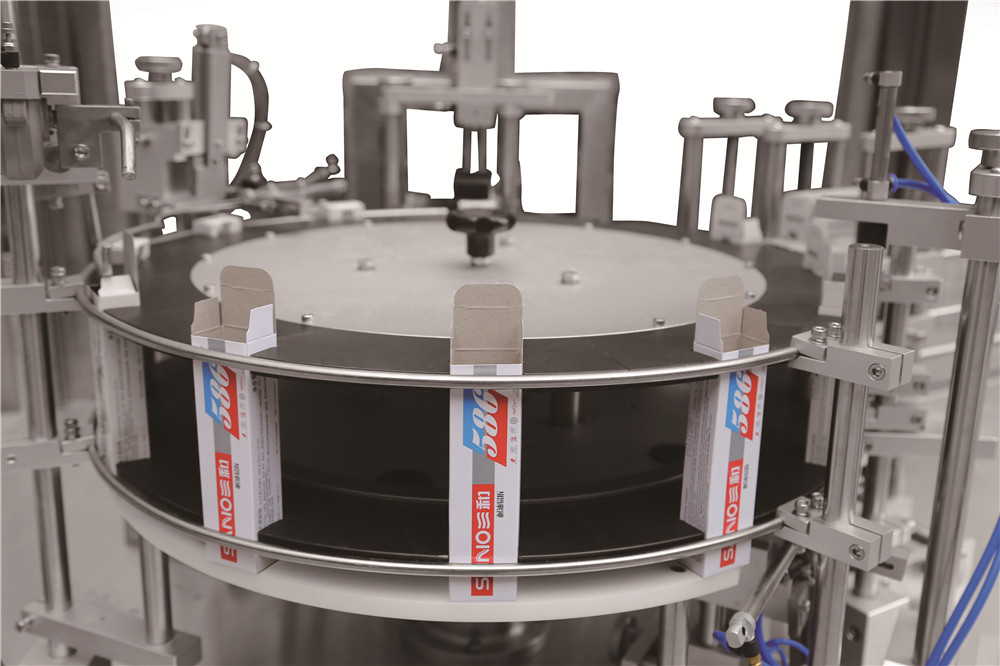

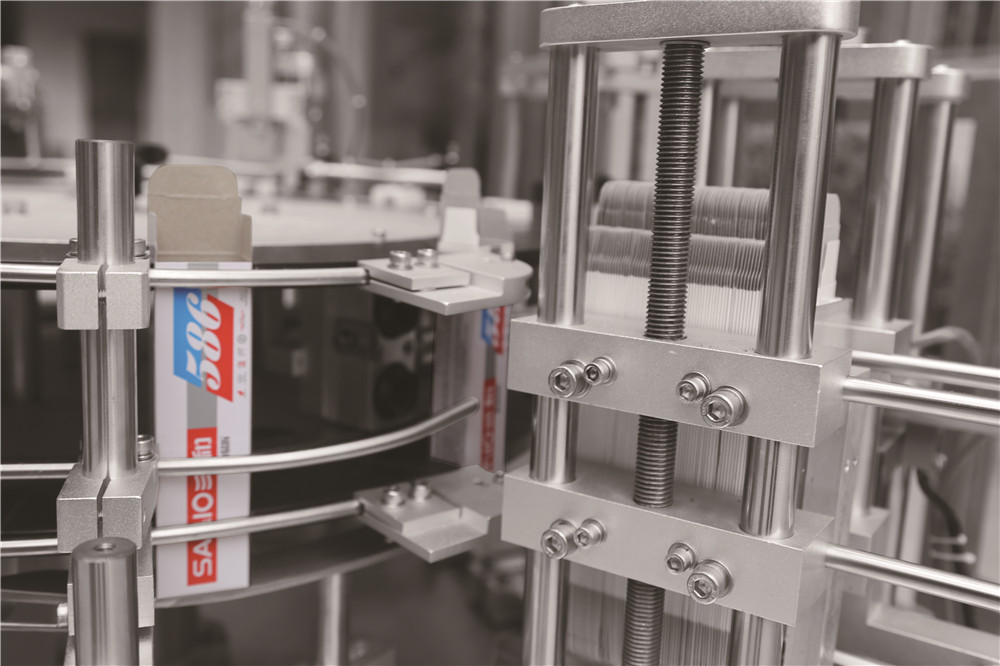

   Push box into star wheel.

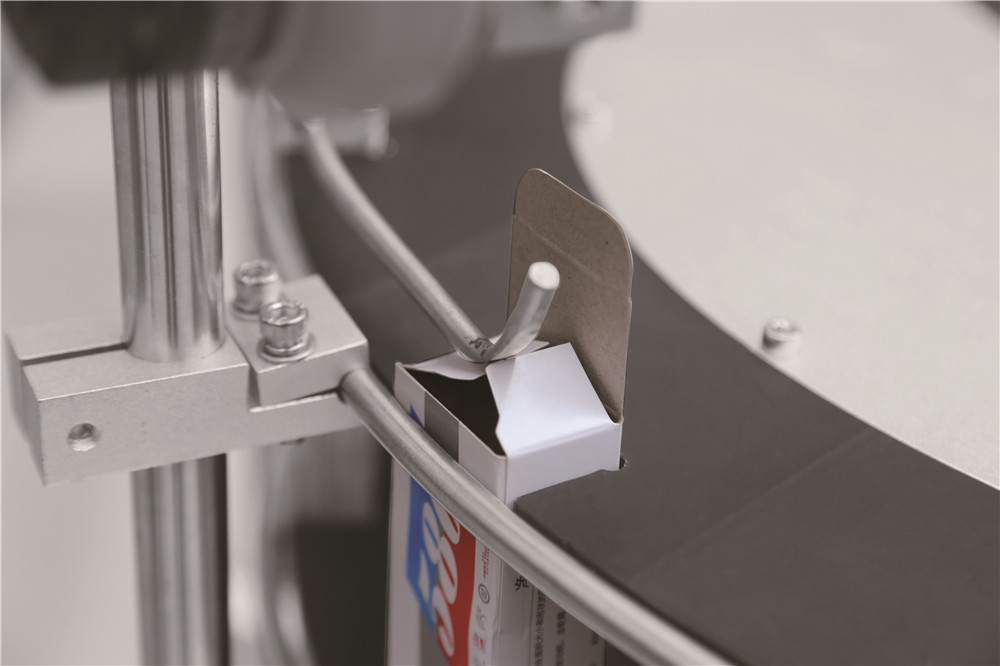

  Fold box lower small flap.

   Press both lower big flaps.

  Flatten both big        flaps.

 Product fall into box.

  Fold box upper small flap.

  Press both upper  big flaps.

  Flatten both big flaps.

   Product push out.

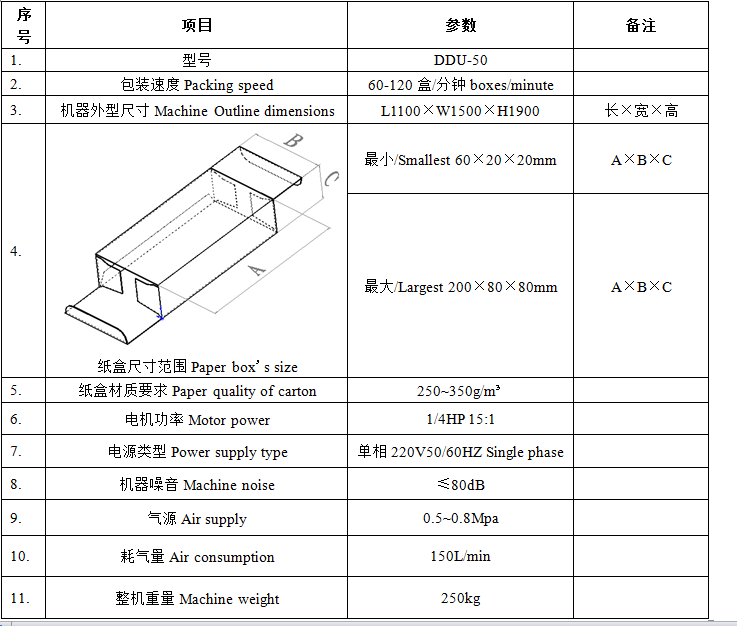

SPECIFICATION :

Note: our company's product replacement is faster. If there is any change, please follow the material object, without notice.
